3.3-11KVA Open Diesel Generator

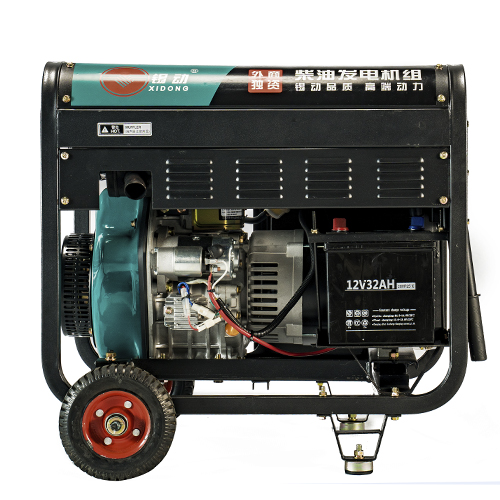

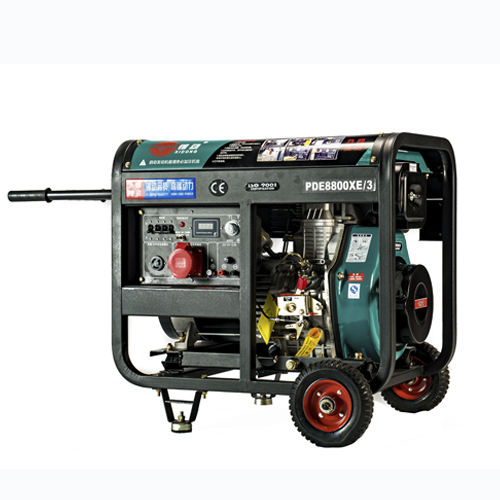

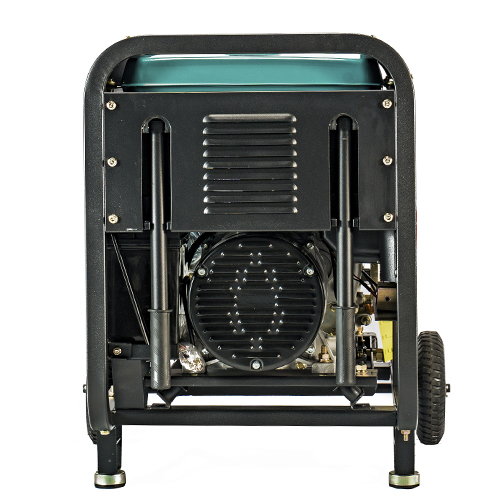

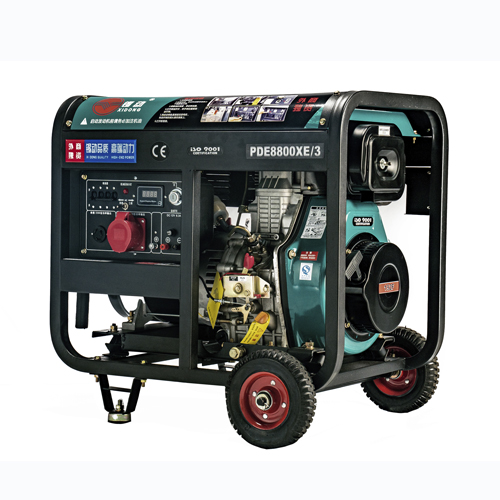

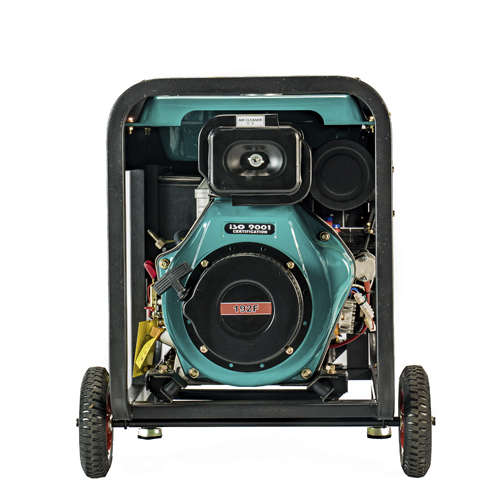

9KVA SINGLE THREE PHASE OPEN FRAME DIESEL GENERATOR

9KVA SINGLE THREE PHASE OPEN FRAME DIESEL GENERATOR

Rated output (KVA)：Single phase 6.4/three phase 9.0
Rated frequency (Hz): 50/60
Phase number: Single phase/three phase/equal power
Cooling method: air cooled
Description: 9KVA SINGLE THREE PHASE OPEN FRAME DIESEL GENERATOR
INQUIRY EMAIL

Product description:

MODEL	8800XE/XE-3/XE3
Rated frequency (Hz)	50/60
Rated output power (KW)	Single phase 6.4/7.0 \| three phase & equal power 7.2/7.9
Rated output power (KVA)	Single phase 6.4/7.0 \| three phase & equal power 9.0/9.9
Phase number	Single phase/three phase/equal power
Power factor	1/0.8
Overall dimension(LWH) (mm)	750515640
Net weight(kg)	126
Fuel tank capacity(L)	16
Noise level〔dB(A)@7m〕	85
Engine type	192FE
Structure type	Single cylinder, in-lined,4-stroke, air cooled
Bore x stroke（mm)	92
Bore x stroke（mm)	75
Displacement（ml）	498
Fuel consumption rate (g/KW.h)	≦277
Rated rotation speed(rpm)	3000
Starting system	12V Electric starter
Insulation grade	H
Continuous running time(H)	8
Optional	AST/remote control/digital panel/wheel and handle

Production & Shipping:

Production Time: 15 days for 100 units, if over 100 units, negotiable with us.

OEM time: 15 days for 100 units, if over 100 units, negotiable with us.

OEM quantity: Above 10 units.

Packing: Plastic / Wooden case packing or customized according to your requests.

Shipping: Usually by sea in container.

We always choose the economical shipping way for customer according the quantity.
