3.3-11KVA Open Diesel Generator

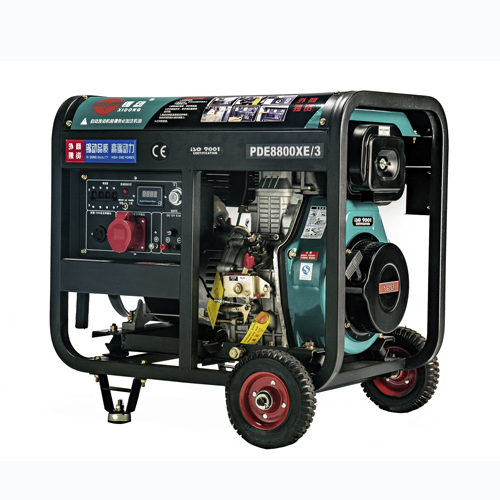

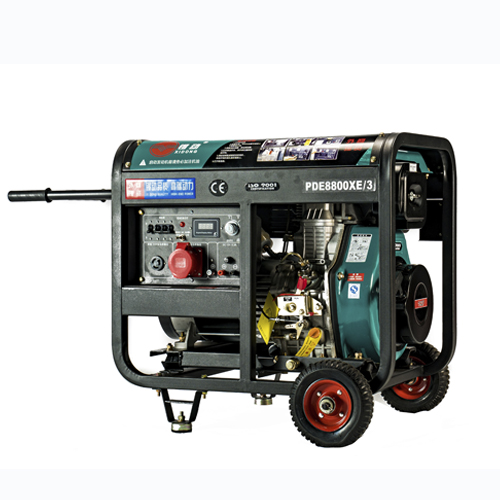

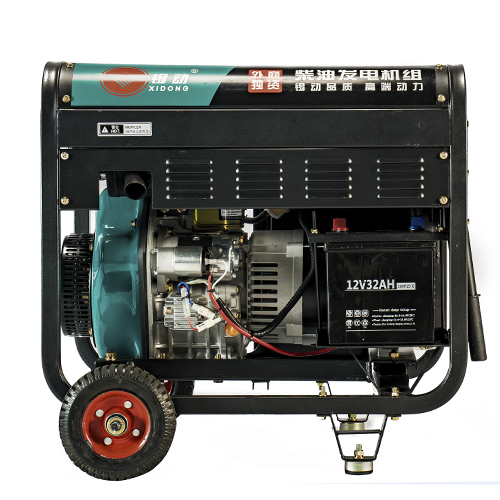

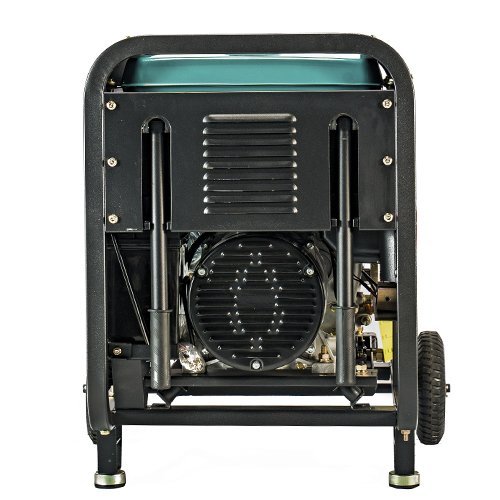

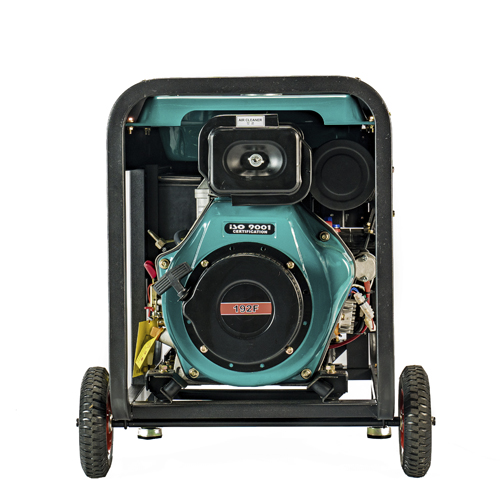

6.2KVA SINGLE THREE PHASE OPEN FRAME DIESEL GENERATOR

6.2KVA SINGLE THREE PHASE OPEN FRAME DIESEL GENERATOR

Rated output (KVA)：Single phase 4.6/three phase 6.2
Rated frequency (Hz): 50/60
Phase number: Single phase/three phase/equal power
Cooling method: air cooled
Description: 6.2KVA SINGLE THREE PHASE OPEN FRAME DIESEL GENERATOR
INQUIRY EMAIL

Product description:

MODEL	6800XE/XE-3/XE3
Rated frequency (Hz)	50/60
Rated output power (KW)	Single phase 4.6/5.1 \| three phase & equal power 5.0/5.5
Rated output power (KVA)	Single phase 4.6/5.1 \| three phase & equal power 6.2/6.8
Phase number	Single phase/three phase/equal power
Power factor	1/0.8
Overall dimension(LWH) (mm)	750515640
Net weight(kg)	115
Fuel tank capacity(L)	12.5
Noise level〔dB(A)@7m〕	85
Engine type	186FAE
Structure type	Single cylinder, in-lined,4-stroke, air cooled
Bore x stroke（mm)	86
Bore x stroke（mm)	72
Displacement（ml）	418
Fuel consumption rate (g/KW.h)	≦275
Rated rotation speed(rpm)	3000
Starting system	12V Electric starter
Insulation grade	H
Continuous running time(H)	8
Optional	AST/remote control/digital panel/wheel and handle

Production & Shipping:

Production Time: 15 days for 100 units, if over 100 units, negotiable with us.

OEM time: 15 days for 100 units, if over 100 units, negotiable with us.

OEM quantity: Above 10 units.

Packing: Plastic / Wooden case packing or customized according to your requests.

Shipping: Usually by sea in container.

We always choose the economical shipping way for customer according the quantity.

Certificate:

FAQ:

Q1: Are you a trading company or a manufactory?

A1: We are a leading manufacturer in diesel generator industry, we supple the factory price with good quality, welcome to visit!

Q2: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A2: Customized design is available. We have many years of experience in OEM, such as YUCHAI which is the most famous power brand in China.

Q3: What are the payment terms?

A3: T/T, Letter of credit etc.

Q4：What’s the warranty of the products?

A4: 12 months from B/L date or 1000 running hours, whichever comes first.

Q5: How about the service and the spare parts?

A5: We supply the technology service support and easily damaged parts for free of charge.

Company information:

XIDONG Diesel Engine (Wuxi) Co., Ltd. is located on the shore of Taihu Lake in Wuxi City, Jiangsu Province, China, fully invested and built by Singapore WELLSAFE International Group. Specializing in engine manufacturing with advanced production equipment and technology, the company integrates R&D, production, innovation, operation and sales, occupies an area of 35,000 square meters. 15,000 square meters standardized factory building has four workshops of multi-cylinder diesel engines (designed annual production capacity: 50,000 sets; power range: 10-400KW), single-cylinder water-cooled diesel engines (designed annual production capacity: 100,000 sets; power range: 8-25KW), single-cylinder air-cooled diesel engines(designed annual production capacity: 150,000 sets; power range: 3-10KW), and low-power generator sets of full series of open frame and silent units (designed annual production capacity: 30,000 sets; power range: 2-30KW).
